Lab 6: Routing

Stephen Jones < sjones@cs.ucr.edu>

Objective

The objective of this tutorial is to show you how to setup a router. Meaning one machine will use another to access to the internet. In our case, one VM will be the router to another VM will that be a host which connects to the internet through the router.

Introduction

In order to do this tutorial you will need two virtual machines on your computer. To accomplish this do, the following: Now, power on both VMs, one at a time. When you boot the second one you will be asked to create a new ID for the VM, just click "CREATE".

Procedures

Configure the VMs

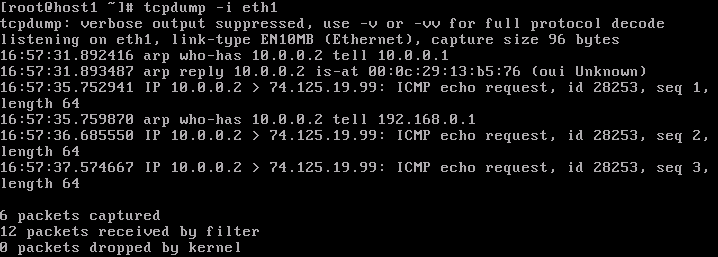

To test to see if the router-host setup is correctly, first on the Router VM run # tcpdump -i eth1, then on the Host VM run # ping -c 3 74.125.19.99

If the ping was successful, then the tcpdump will have captured all the ping packets from the host VM.


Wrapping up the tutorial
If you wish to ping "normal" websites like www.google.com, we need to change the nameserver to 138.23.169.10 by editting the /etc/resol.conf file on both VMs. However, this will only hold true for this session as the DHCP server will overwrite this on boot up.

One more command is needed to ping www.goggle.com from the Host VM. We need to disable firewall rules on the Router VM to allow name resolution on the Host VM: # /etc/init.d/iptables stop

Making changes persistent
All the changes we have done thus far are only TEMPORARY! It will revert back to "default" upon a system restart. In order to make this permanent we need to edit the files that configure the network on bootup.

We need to edit the files /etc/sysconfig/network, /etc/sysconfig/network-scripts/ifcfg-eth0, /etc/sysconfig/network-scripts/ifcfg-eth1

Additionally, we need to make the IP Forwarding permanent. To do this, we need to edit the file /etc/sysct1.conf. Change net.ipv4.ip_forward to 1.

Conclusion

All that's left to do is reboot both VMs, and now the host VM will route to your router VM. Future tutorials will be based upon this setup. So if you wish to continue my line of tutorials, be sure to have this up and running correctly. Also, if you still want to ping www.google.com you will need to repeat the steps that changes the nameserver and modify the firewall once again.

Further Reading

If you wish to know the inner-workings of routing algorithms: An FAQ on the wonderful DHCP

Glossary

router
"A router is a computer whose software and hardware are usually tailored to the tasks of routing and forwarding information. With appropriate software, a PC can act as a router." (source: www.wikipedia.org)

routing
"Routing (or routeing) is the process of selecting paths in a network along which to send data or physical traffic. Routing is performed for many kinds of networks, including the telephone network, the Internet, and transport networks."

"Routing directs forwarding, the passing of logically addressed packets from their source toward their ultimate destination through intermediary nodes; typically hardware devices called routers, bridges, gateways, firewalls, or switches. Ordinary computers with multiple network cards can also forward packets and perform routing, though they are not specialized hardware and may suffer from limited performance. The routing process usually directs forwarding on the basis of routing tables which maintain a record of the routes to various network destinations. Thus constructing routing tables, which are held in the routers' memory, becomes very important for efficient routing." (source: www.wikipedia.org)

host (network)
"In computer networking, a host or host computer is a computer connected to the Internet, or sometimes other computer networks[1]. A host computer can host information as well as client and/or server software."

"Every Internet host has a unique IP address, including a host address part. The host address is assigned either manually by the computer administrator, or automatically at start-up by means of the Dynamic Host Configuration Protocol (DHCP)."

"Every host is a network node (i.e. a network device), but every node is not a host. Network nodes such as modems and network switches are not assigned host addresses, and are not considered as hosts. Devices such as network printers and hardware routers are assigned IP host addresses, but since they are not general-purpose computers, they are sometimes not considered as hosts in the literature." (source: www.wikipedia.org)

ping
"Ping is a computer network tool used to test whether a particular host is reachable across an IP network; it is also used to self test the network interface card of the computer. It works by sending ICMP "echo request" packets to the target host and listening for ICMP "echo response" replies. Ping estimates the round-trip time, generally in milliseconds, and records any packet loss, and prints a statistical summary when finished." (source: www.wikipedia.org)

Dynamic Host Configuration Protocol (DHCP)
"Dynamic Host Configuration Protocol (DHCP) is a protocol used by networked devices (clients) to obtain various parameters necessary for the clients to operate in an Internet Protocol (IP) network. By using this protocol, system administration workload greatly decreases, and devices can be added to the network with minimal or no manual configurations." (source: www.wikipedia.org)

Questions

  1. The outputs that show all the traffic from the Host VM go through the Router VM.
    Here's the traceroute of the Host through the Router. If you wish to see the tcpdump of the Router while the Host pings an IP address, refer to earlier in the tutorial at the end of the section "Configure the VMs".
